Comparing DMD and KDMD for Slow manifold dynamics

Here we consider perhaps one of the most widely known classic example of Koopman decomposition: a nonlinear system with a fast and slow manifold:

\[\begin{split}\dot{x}_1 = \mu x_1 \\ \dot{x}_2 = \lambda (x_2-x_1^2)\end{split}\]

where \(\mu=-0.05, \lambda=-1\).

import sys
sys.path.append('../src')

%matplotlib inline
import matplotlib.pyplot as plt
import numpy as np
import warnings
warnings.filterwarnings('ignore')

import matplotlib.cm as cm

import pykoopman as pk
from scipy.integrate import odeint
from scipy.stats.qmc import Sobol

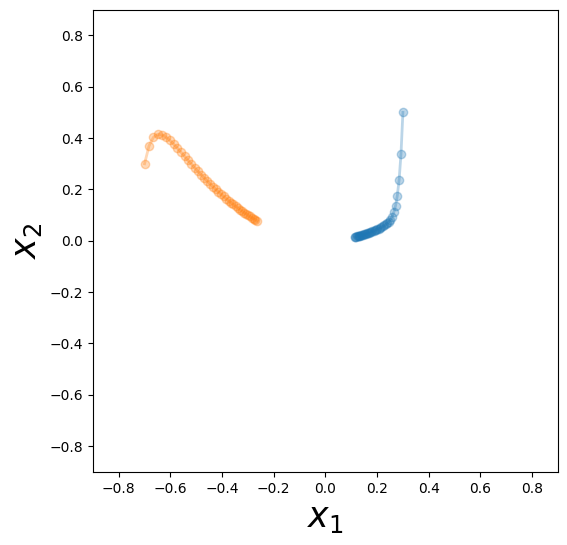

Next we generate the data

mu = -0.05
lda = -1.0
def slow_manifold(x, t, mu, lda):
    x1, x2 = x
    dxdt = [mu*x1,
            lda*(x2-x1*x1)]
    return dxdt

n_t = 40
t = np.linspace(0, 20, n_t,endpoint=False)

# use quasi-random for generating samples
sampler=Sobol(d=2)


x_list = []
x_next_list = []
plt.figure(figsize=(6,6))
# for x0 in sampler.random(10)-0.5:
#     sol = odeint(slow_manifold, x0, t, args=(mu,lda))
#     plt.plot(sol[:,0],sol[:,1],'o-',lw=2,alpha=0.3)

#     x_list.append(sol[:-1])
#     x_next_list.append(sol[1:])

x0 = [0.3,0.5]
sol = odeint(slow_manifold, x0, t, args=(mu,lda))
plt.plot(sol[:,0],sol[:,1],'o-',lw=2,alpha=0.3)
x_list.append(sol[:-1])
x_next_list.append(sol[1:])

x0 = [-0.7,0.3]
sol = odeint(slow_manifold, x0, t, args=(mu,lda))
plt.plot(sol[:,0],sol[:,1],'o-',lw=2,alpha=0.3)
x_list.append(sol[:-1])
x_next_list.append(sol[1:])

plt.xlabel(r'$x_1$',size=25)
plt.ylabel(r'$x_2$',size=25)
plt.xlim([-0.9,0.9])
plt.ylim([-0.9,0.9])

(-0.9, 0.9)

## single trajectory
data_st_X = np.vstack(x_list[:1])
data_st_Y = np.vstack(x_next_list[:1])


# plot
plt.figure(figsize=(6,6))
plt.plot([data_st_X[:,0],data_st_Y[:,0]],
         [data_st_X[:,1],data_st_Y[:,1]],'o-',alpha=0.3)

plt.xlim([-0.9,0.9])
plt.ylim([-0.9,0.9])

plt.xlabel(r'$x_1$',size=25)
plt.ylabel(r'$x_2$',size=25)

Text(0, 0.5, '$x_2$')

## two trajectories
data_2t_X = np.vstack(x_list[:2])
data_2t_Y = np.vstack(x_next_list[:2])

# plot
plt.figure(figsize=(6,6))
plt.plot([data_2t_X[:,0],data_2t_Y[:,0]],
         [data_2t_X[:,1],data_2t_Y[:,1]],'o-',alpha=0.3)

plt.xlim([-0.9,0.9])
plt.ylim([-0.9,0.9])
plt.xlabel(r'$x_1$',size=25)
plt.ylabel(r'$x_2$',size=25)

Text(0, 0.5, '$x_2$')

1. Applying DMD

fitting 1 trajectory

from pydmd import DMD
from pykoopman.regression import PyDMDRegressor

regressor = DMD(svd_rank=2)
# regressor = PyDMDRegressor(DMD(svd_rank=2))

model_dmd = pk.Koopman(regressor=regressor)

# training
model_dmd.fit(data_st_X,data_st_Y)
model_dmd.time['dt']=t[1]-t[0]
for eigval in model_dmd.continuous_lamda_array:
    print('continuous eigenvalue = ',eigval)

# reconstruction
x0 = data_st_X[0:1]
x_tmp = x0
x_pred_list = [x_tmp]
for i in range(data_st_X.shape[0]-1):
    x_tmp = model_dmd.predict(x_tmp)
    x_pred_list.append(x_tmp)

X_pred = np.vstack(x_pred_list)

plt.figure(figsize=(6,6))
plt.plot(X_pred[:,0], X_pred[:,1],'-ob',lw=4,label='pykoopman - dmd')
plt.plot(data_st_X[:,0],data_st_X[:,1],'ro--',lw=2,label='train data')
plt.legend(loc='best')
plt.xlabel(r'$x_1$')
plt.ylabel(r'$x_2$')
plt.xlim([-0.9,0.9])
plt.ylim([-0.9,0.9])

continuous eigenvalue =  (-0.04999999821162009+0j)
continuous eigenvalue =  (-0.8793780367057831+0j)

(-0.9, 0.9)

fitting 2 trajectories

model_dmd.fit(data_2t_X,data_2t_Y)

x0 = data_2t_X[:1]
x_tmp = x0
x_pred_list = [x_tmp]
for i in range(n_t-2):
    x_tmp = model_dmd.predict(x_tmp)
    x_pred_list.append(x_tmp)
X_pred_1 = np.vstack(x_pred_list)

x0 = data_2t_X[n_t-1:n_t]
x_tmp = x0
x_pred_list = [x_tmp]
for i in range(n_t-2):
    x_tmp = model_dmd.predict(x_tmp)
    x_pred_list.append(x_tmp)

X_pred_2 = np.vstack(x_pred_list)


plt.figure(figsize=(6,6))
plt.plot(X_pred_1[:,0], X_pred_1[:,1], '-b', lw=4, label='pykoopman - kdmd 1 ')
plt.plot(data_2t_X[:n_t-1,0], data_2t_X[:n_t-1,1], 'r--', lw=2, label='true 1 ')

plt.plot(X_pred_2[:,0], X_pred_2[:,1], '-c', lw=4, label='pykoopman - kdmd 2 ')
plt.plot(data_2t_X[n_t-1:,0], data_2t_X[n_t-1:,1], 'y--', lw=2, label='true 2')


plt.legend(loc='best')
plt.xlabel(r'$x_1$')
plt.ylabel(r'$x_2$')
plt.xlim([-0.9,0.9])
plt.ylim([-0.9,0.9])


# get eigenvalues
for eigval in model_dmd.continuous_lamda_array:
    print('continuous eigenvalue = ',eigval)

continuous eigenvalue =  (-0.0249999999747155+0j)
continuous eigenvalue =  (-0.14586482575904705+0j)

Conclusion: 1) vanilla DMD is not good for global linearization. 2) it cannot take more than 1 trajectory from highly nonlinear low-dimensional system (it will work for high-dimensional system where the number of harmonics is much less compared to system state)

2. Applying KDMD

First, let’s find out what should be the right hyperparameter for kdmd

from pykoopman.regression import KDMD
from sklearn.gaussian_process.kernels import RBF, DotProduct, ConstantKernel

forward_backward=False
svd_rank = 5
tikhonov_regularization = 1e-12

err_st_list = []
err_2t_list = []
err_mt_list = []
scale_array = np.logspace(-4,4,40)
for scale in scale_array:
    regressor = KDMD(svd_rank=svd_rank,
                     # kernel=DotProduct(sigma_0=scale),
                     kernel=RBF(length_scale=np.sqrt(scale)),
                     forward_backward=forward_backward,
                     tikhonov_regularization=tikhonov_regularization)

    model_kdmd = pk.Koopman(regressor=regressor)

    # single data
    model_kdmd.fit(data_st_X,data_st_Y)
    err_st = np.linalg.norm(model_kdmd.predict(data_st_X) - data_st_Y)

    # 2 trajectory data
    model_kdmd.fit(data_2t_X,data_2t_Y)
    err_2t = np.linalg.norm(model_kdmd.predict(data_2t_X) - data_2t_Y)

    # multiple data
    # model_kdmd.fit(data_mt_X_for_train,data_mt_Y_for_train)
    err_mt = 0 # np.linalg.norm(model_kdmd.predict(data_mt_X_for_train) - data_mt_Y_for_train)
    # model_kdmd.fit(data_mt_X_for_train,data_mt_Y_for_train)

    # model.fit(sol)
    # print(model.koopman_matrix.shape)

    err_st_list.append(err_st)
    err_2t_list.append(err_2t)
    err_mt_list.append(err_mt)

    print('scale = ',scale)

plt.loglog(scale_array, err_st_list,'-o',label='1')
plt.loglog(scale_array, err_2t_list,'-^',label='2')
plt.loglog(scale_array, err_mt_list,'-s',label='m')
plt.legend(loc='best')

scale =  0.0001
scale =  0.0001603718743751331
scale =  0.00025719138090593444
scale =  0.0004124626382901352
scale =  0.0006614740641230146
scale =  0.0010608183551394483
scale =  0.0017012542798525892
scale =  0.0027283333764867696
scale =  0.004375479375074184
scale =  0.007017038286703823
scale =  0.011253355826007646
scale =  0.018047217668271703
scale =  0.028942661247167517
scale =  0.046415888336127774
scale =  0.07443803013251689
scale =  0.11937766417144358
scale =  0.19144819761699575
scale =  0.30702906297578497
scale =  0.49238826317067363
scale =  0.7896522868499725
scale =  1.2663801734674023
scale =  2.030917620904735
scale =  3.257020655659783
scale =  5.2233450742668435
scale =  8.376776400682925
scale =  13.433993325988988
scale =  21.54434690031882
scale =  34.55107294592218
scale =  55.41020330009492
scale =  88.86238162743408
scale =  142.51026703029964
scale =  228.54638641349885
scale =  366.5241237079626
scale =  587.8016072274912
scale =  942.6684551178854
scale =  1511.77507061566
scale =  2424.462017082326
scale =  3888.155180308085
scale =  6235.507341273912
scale =  10000.0

<matplotlib.legend.Legend at 0x103205ba320>

choose the model with best hyperparameter, clearly here it is overfitting because we only have one trajectory

scale_st = scale_array[np.argmin(err_st_list)]
regressor_st = KDMD(svd_rank=svd_rank,
                 kernel=RBF(length_scale=np.sqrt(scale_st)),
                 forward_backward=forward_backward,
                 tikhonov_regularization=tikhonov_regularization
                )

scale_2t = scale_array[np.argmin(err_2t_list)]
regressor_2t = KDMD(svd_rank=svd_rank,
                 kernel=RBF(length_scale=np.sqrt(scale_2t)),
                 forward_backward=forward_backward,
                 tikhonov_regularization=tikhonov_regularization
                )

model_kdmd_st = pk.Koopman(regressor=regressor_st)
model_kdmd_2t = pk.Koopman(regressor=regressor_2t)

print('optimal scale 1 = ',scale_st)
print('optimal scale 2 = ',scale_2t)

optimal scale 1 =  228.54638641349885
optimal scale 2 =  2424.462017082326

1 trajectory

model_kdmd_st.fit(data_st_X,data_st_Y)

x0 = data_st_X[:1]
x_tmp = x0
x_pred_list = [x_tmp]
for i in range(n_t-2):
    x_tmp = model_kdmd_st.predict(x_tmp)
    x_pred_list.append(x_tmp)

X_pred = np.vstack(x_pred_list)

plt.figure(figsize=(6,6))
plt.plot(X_pred[:,0], X_pred[:,1],'-b',lw=4,label='pykoopman - kdmd')
plt.plot(data_st_X[:,0],data_st_X[:,1],'r--',lw=2,label='true')
plt.legend(loc='best')
plt.xlabel(r'$x_1$')
plt.ylabel(r'$x_2$')
plt.xlim([-0.9,0.9])
plt.ylim([-0.9,0.9])

# get eigenvalues
for eigval in model_kdmd_st.continuous_lamda_array:
    print('continuous eigenvalue = ',eigval)

continuous eigenvalue =  (-0.9779338545838757+0j)
continuous eigenvalue =  (-0.49910554654684647+0j)
continuous eigenvalue =  (-1.146364687825299e-07+0j)
continuous eigenvalue =  (-0.025013364031557028+0j)
continuous eigenvalue =  (-0.05078929436412745+0j)

Validate Koopman eigenfunction with an unseen trajectory

x0 = [0.2,-0.8]
sol_unseen = odeint(slow_manifold, x0, t, args=(mu,lda))

efun_index, linearity_error = model_kdmd_st.validity_check(t, sol_unseen)


plt.figure()
plt.scatter(efun_index,linearity_error )

for i in range(len(efun_index)):
    eigvals_c = np.log(np.diag(model_kdmd_st.lamda))/model_kdmd_st.time['dt']
    plt.text(1e-1+1.0*efun_index[i],linearity_error[i],
             "{:.2f}".format(eigvals_c[efun_index][i]))
plt.yscale('log')
plt.xlabel('index')
plt.ylabel('linear evolution error in Koopman eigenspace')
plt.title('label is the continuous eigenvalue')
# plt.plot(model_kdmd_2t.eigenvalues_continuous[efun_index])

Text(0.5, 1.0, 'label is the continuous eigenvalue')

Check out the validation error across 100 random unseen trajectories

plt.figure()
x0_array = np.random.rand(100,2)-0.5
eigvals_c = np.log(np.diag(model_kdmd_st.lamda))/model_kdmd_st.time['dt']
for x0 in x0_array:
    sol_unseen = odeint(slow_manifold, x0, t, args=(mu,lda))
    efun_index, linearity_error = model_kdmd_st.validity_check(t, sol_unseen)

    plt.scatter(eigvals_c[efun_index],linearity_error)

plt.xlabel('continuous eigenvalue')
plt.ylabel('linear evolution error')

Text(0, 0.5, 'linear evolution error')

2 trajectories

model_kdmd_2t.fit(data_2t_X,data_2t_Y)

x0 = data_2t_X[:1]
x_tmp = x0
x_pred_list = [x_tmp]
for i in range(n_t-2):
    x_tmp = model_kdmd_2t.predict(x_tmp)
    x_pred_list.append(x_tmp)
X_pred_1 = np.vstack(x_pred_list)

x0 = data_2t_X[n_t-1:n_t]
x_tmp = x0
x_pred_list = [x_tmp]
for i in range(n_t-2):
    x_tmp = model_kdmd_2t.predict(x_tmp)
    x_pred_list.append(x_tmp)

X_pred_2 = np.vstack(x_pred_list)


plt.figure(figsize=(6,6))
plt.plot(X_pred_1[:,0], X_pred_1[:,1], '-b', lw=4, label='pykoopman - kdmd 1 ')
plt.plot(data_2t_X[:n_t-1,0], data_2t_X[:n_t-1,1], 'r--', lw=2, label='true 1 ')

plt.plot(X_pred_2[:,0], X_pred_2[:,1], '-c', lw=4, label='pykoopman - kdmd 2 ')
plt.plot(data_2t_X[n_t-1:,0], data_2t_X[n_t-1:,1], 'y--', lw=2, label='true 2')
plt.xlim([-0.9,0.9])
plt.ylim([-0.9,0.9])


plt.legend(loc='best')
plt.xlabel(r'$x_1$')
plt.ylabel(r'$x_2$')

# get eigenvalues
model_kdmd_2t.time['dt']=t[1]-t[0]
for eigval in np.diag(model_kdmd_2t.lamda):
    print('continuous eigenvalue = ',np.log(eigval)/model_kdmd_2t.time['dt'])

continuous eigenvalue =  -1.043123221391462
continuous eigenvalue =  -0.6536012105988731
continuous eigenvalue =  -1.8501593617281976e-06
continuous eigenvalue =  -0.05000267048212399
continuous eigenvalue =  -0.08628982133837682

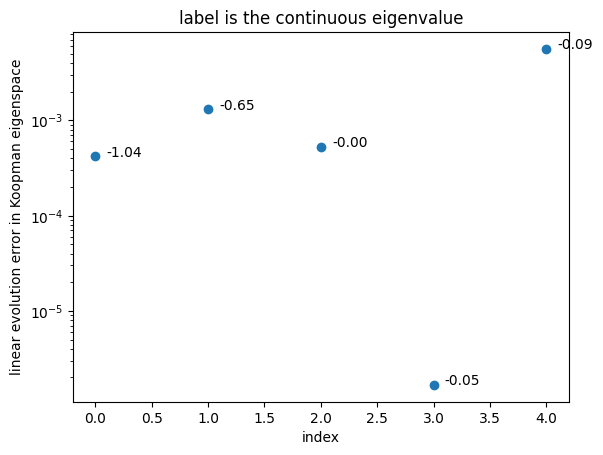

Validate the learned Koopman eigenfunction

efun_index, linearity_error = model_kdmd_2t.validity_check(t, sol_unseen)

eigvals_c = np.log(np.diag(model_kdmd_2t.lamda))/model_kdmd_2t.time['dt']
plt.figure()
plt.scatter(efun_index,linearity_error )

for i in range(len(efun_index)):
    plt.text(1e-1+1.0*efun_index[i],linearity_error[i],
             "{:.2f}".format(eigvals_c[efun_index][i]))
plt.yscale('log')
plt.xlabel('index')
plt.ylabel('linear evolution error in Koopman eigenspace')
plt.title('label is the continuous eigenvalue')
# plt.plot(model_kdmd_2t.eigenvalues_continuous[efun_index])

Text(0.5, 1.0, 'label is the continuous eigenvalue')

Check out the validation error across 100 random unseen trajectories

plt.figure()
x0_array = np.random.rand(100,2)-0.5
eigvals_c = np.log(np.diag(model_kdmd_2t.lamda))/model_kdmd_2t.time['dt']
for x0 in x0_array:
    sol_unseen = odeint(slow_manifold, x0, t, args=(mu,lda))
    efun_index, linearity_error = model_kdmd_2t.validity_check(t, sol_unseen)

    plt.scatter(eigvals_c[efun_index],linearity_error)

plt.xlabel('continuous eigenvalue')
plt.ylabel('linear evolution error')

Text(0, 0.5, 'linear evolution error')

Conclusion: 1) we can see -0.05 and -1 has very small validation error variance 2) it is likely that the one has largest variance is most likely to be the spurious mode

Access the matrices related to Koopman operator

model_kdmd_st.A.shape

(5, 5)

model_kdmd_st.C.shape

(2, 5)

model_kdmd_st.W.shape

(2, 5)
